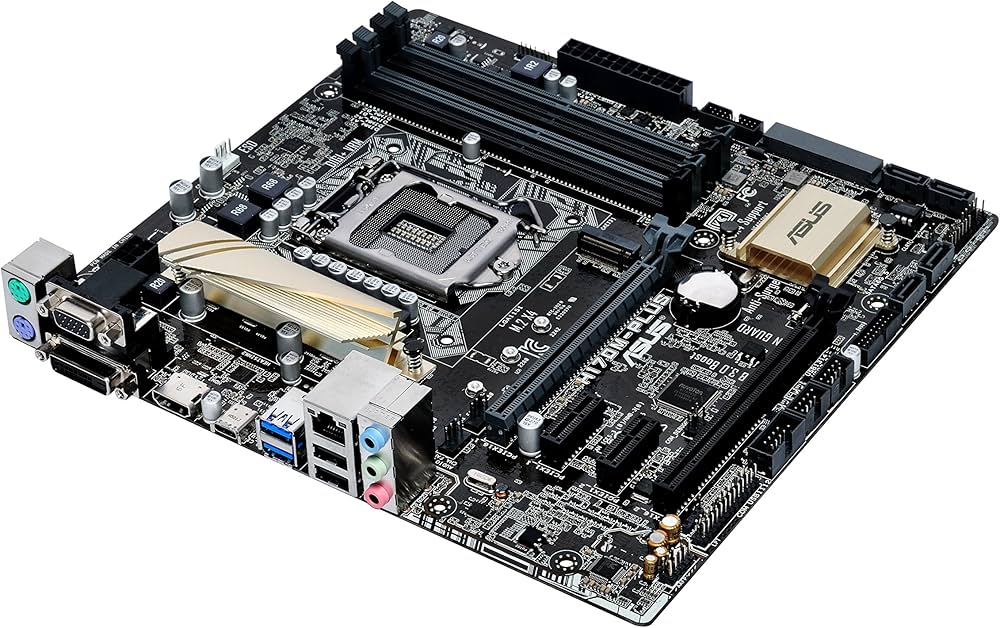

H170M.2. 6/7 gen. (DDR4 4 ram) Port Motherboard Used

H170M.2. 6/7 gen. (DDR4 4 ram) Port Motherboard Used

රු12,500.00

or 3 X රු4,166.67 with Koko

Category:
  • Chipset: Intel H170 Express
  • Processor Socket: Socket H4 (LGA 1151)
  • Compatible Processors: Supports 6th Gen (Skylake) and 7th Gen (Kaby Lake) Intel Core i7, i5, i3, Pentium, and Celeron processors.
  • Integrated Graphics: Relies on integrated graphics processor capabilities of the installed CPU, with various output ports available (HDMI, DVI, VGA, DisplayPort depending on the specific board model).
  • Memory Slots: 4 x 288-pin DIMM slots.
  • Memory Type: DDR4 SDRAM, non-ECC, un-buffered memory.
  • Maximum Supported Memory: Up to 64 GB.
  • Supported Speed: Typically supports DDR4 2133 MHz by default, running in dual-channel architecture. Higher speeds may be supported in XMP mode depending on the specific model, but are often downclocked to 2133 MHz due to chipset limitations.
  • PCI Express Slots: Features a combination of PCIe 3.0 x16 and PCIe 3.0 x1 slots (exact configuration varies by manufacturer, e.g., ASRock H170M Pro4 has 2 x PCIe 3.0 x16 and 2 x PCIe 3.0 x1).
  • M.2 Interface: Includes at least one M.2 Socket 3, supporting both SATA and PCIe 3.0 x4 storage devices for fast data transfer speeds (up to 32 Gb/s).
  • SATA Ports: Typically includes 6 x SATA 6Gb/s ports, with some models also featuring a SATA Express port.
  • RAID Support: Yes, supports RAID 0, 1, 5, and 10 configurations.
  • Form Factor: Available in various form factors, including Micro ATX (mATX) and ATX, depending on the specific model (e.g., ASUS H170M-PLUS is Micro ATX, ASRock H170 Pro4 is ATX).
  • USB Ports: A combination of USB 3.0/3.1 Gen 1 and USB 2.0 ports are available (both internal headers and rear panel ports), with some models including a reversible USB Type-C port.
  • Audio: Typically an 8-channel (7.1) High Definition Audio codec (e.g., Realtek ALC887/ALC892).
  • LAN: Gigabit Ethernet controller (e.g., Intel I219V or Realtek RTL8111H).
  • 3 Month warranty
