| XP-P301G | ||
| Printing method | Direct Thermal | |
| Resolution | 203 DPI | |
| Emulation | ESC/POS | TSPL |
| Max.print speed | 70 mm/s | |
| Max.print width | 72 mm | |
| Storage | Memory:128KB /FLASH:512 KB+8MB | |
| Monitor | 0.96″, 128×64 OLED | |
| Button | Power button, Feed button | |
| Media | ||
| Media type | Continuous paper, Iabel paper,black label paper 25~80mm | |
| Media width | 25~80mm | |
| Paper thickness | 0.06~0.14mm | |
| Media roll diameter | Max.50 mm | |
| Paper exit method | Tearing off | |
| Fonts/Graphics/Symbologies | ||
| Character size | Simplified Chinese (GB18030): 24 × 24, Traditional Chinese (BIG5): 24 × 24, Japanese (SHIFT-JIS): 24 × 24, Korean (KSC5601): 24 × 24,
English characters FONTA: 12 × 24, English Character FONTB: 9 × 17 |
|
| 1D barcode | UPC-A / UPC-E / JAN13(EAN13) / JAN8(EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128 | CODE128 / EAN128 / ITF / CODE39 / CODE39C / CODE39S / CODE93 / EAN13 / EAN13+2 / EAN13+5 / EAN8 / EAN8+2 / EAN8+5 / CODABAR / POSTNET / UPC-A / UPCA+2 /UPCA+5/ UPCE / UPCE+2 / UPCE+5 / MSI / MSIC / PLESSEY /ITF14 / EAN14 |
| 2D barcode | QR code / PDF-417 | |
| Character enlargement/rotation | Magnify 1-8 times, rotate (0℃, 90℃,180°℃, 270°℃) | |
| Physical Features | ||
| Dimension | 123 × 110 × 62mm(D×W×H) | |
| Weight | 340g | |
| Operation | 6~40 ℃, Humidity: RH 20 ~ 90% | |
| Storage environment | -25 ~ 55 °℃, Humidity: RH 20 ~ 93% | |
| Power Input | DC 5V/ 2A | |

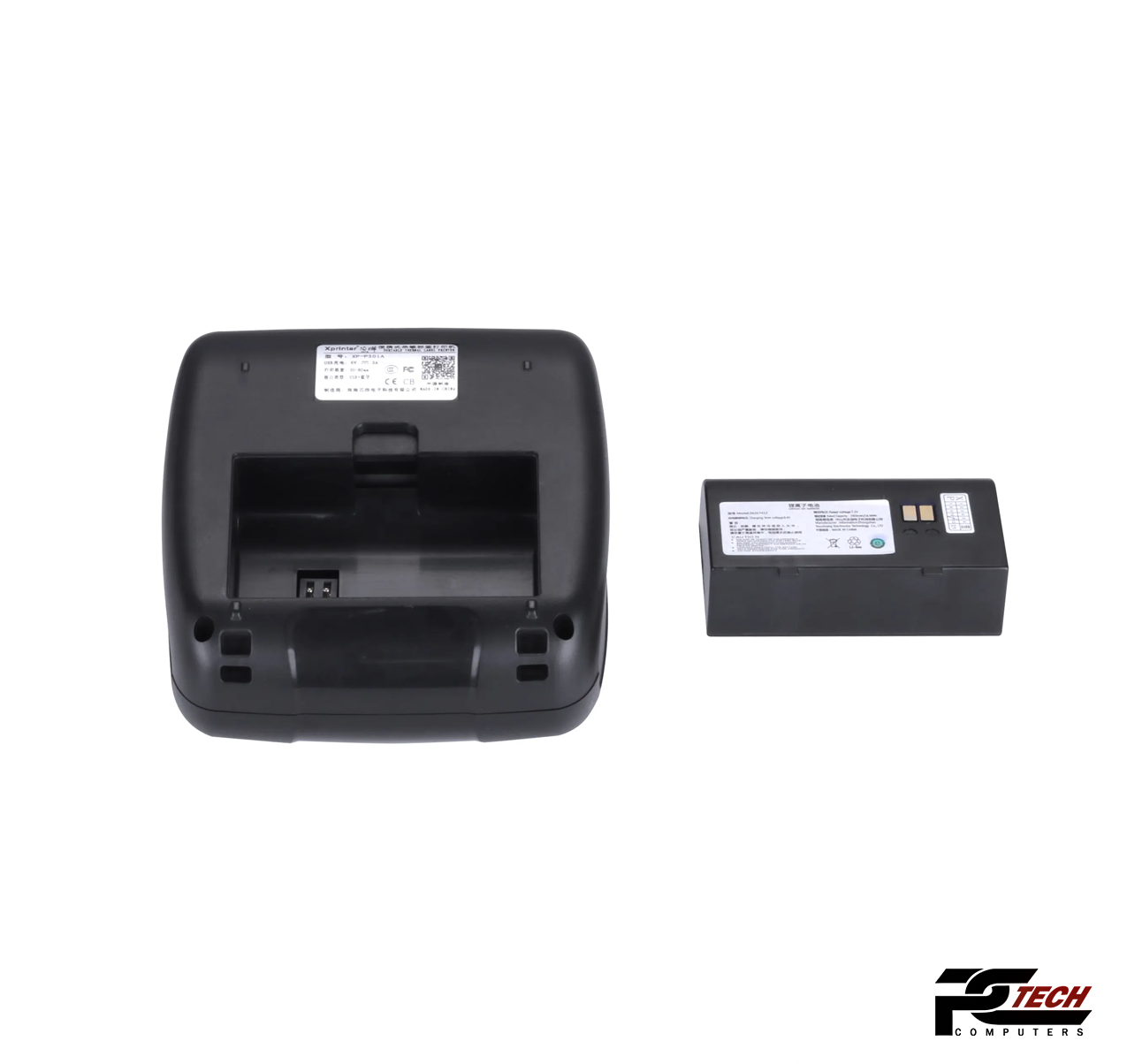

| Battery | DC 7.2V/ 2550mAh | |
| Charging time | 3 hour, 58min | |
| Standby time | 95 hour, 48min | |
| Printing battery life | 3 hour, 47min | |
| Operating system | WINDOWS/ Android / IOS / Linux | |
Warranty Period – 6 Months
